Circular electrical connectors: a reliable "bridge" for modern electronic systems

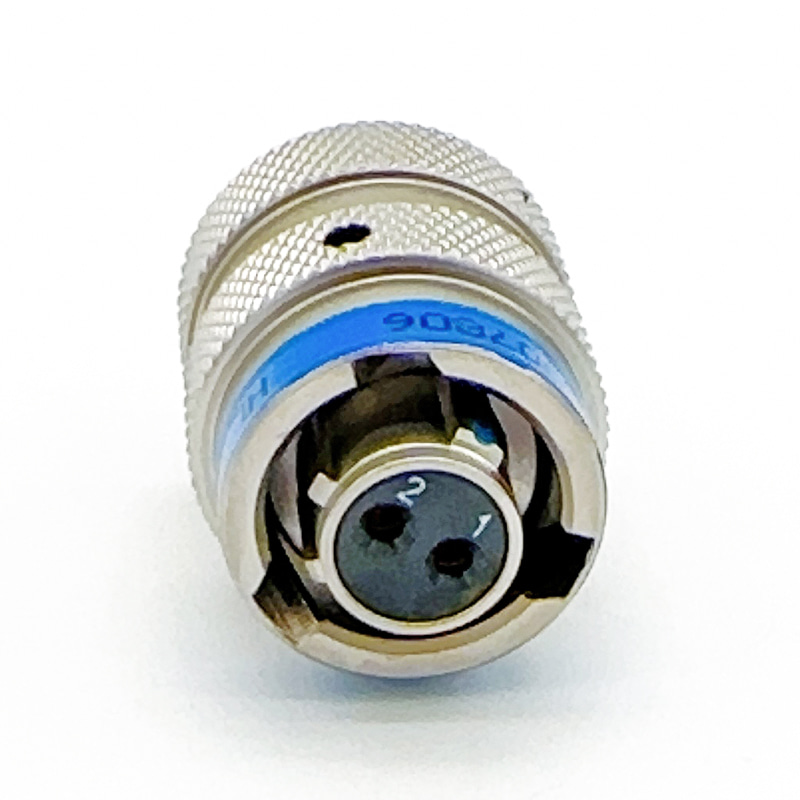

Circular electrical connectors are electronic connectors with a cylindrical structure and a circular mating surface. They are usually used for interconnection between devices and belong to Class 5 in the interconnection classification. The main components of this connector include a plug and a socket. The plug is usually fixed at one end of the device and contains components such as a center pin, a shell, and contacts; while the socket is fixed at the other end of the device and matches the plug structure.

Advantages of circular electrical connectors
Rugged and durable: The cylindrical structure provides additional mechanical strength for the connector.
Waterproof and dustproof: Many circular connectors have sealing functions to prevent moisture and dust from entering.
Easy to use: Usually designed to be easy to connect and disconnect.
High reliability: Maintain stable connections even in high vibration environments.

Application scenarios
Circular electrical connectors are widely used in many fields, including aerospace, military, industrial equipment, medical equipment, and daily communications. They are able to maintain stable power, signal, and data transmission in extreme environments (such as high temperature, low temperature, high humidity, and high vibration). For example, in the aerospace field, circular connectors need to meet strict military standards such as MIL-DTL-38999 and EN2997.

How to choose the right circular electrical connector?
When choosing a circular electrical connector, there are several factors to consider, including but not limited to:
Environmental conditions: whether waterproof, dustproof or high temperature resistance is required.
Connection requirements: the number of pins required, the type of signal (such as power, data or signal).
Installation method: whether it needs to be front-mounted or rear-mounted.
Cost and budget: Although circular connectors have superior performance, they may cost more than standard rectangular connectors.

Future development trends
As technology continues to advance, circular electrical connectors are also evolving to meet the needs of modern electrical systems for high-speed data transmission and miniaturization. They are adapting to these new challenges while maintaining core durability and reliability.

How to choose the right circular connector?
Key parameter guide
Protection level: Choose IP67 (dustproof and waterproof) or higher according to the application scenario;
Rated voltage/current: Products above 1000V should be selected for high-voltage scenarios;
Contact material: Gold-plated pins are highly corrosion-resistant and suitable for marine environments;
Mechanical life: Models with ≥5000 cycles should be paid attention to for high plug-in and unplug frequency scenarios.

Industry certification is essential
UL/CUL (North American safety certification)
CE (EU compliance mark)
MIL-DTL-38999 (US military standard, essential for aerospace)
